Full-auto Air Filter Expanded Metal Mesh Spiral Machine

Full-auto Air Filter Expanded Metal Mesh Spiral Machine

Full-auto Air Filter Expanded Metal Mesh Spiral Machine
Quantity:
Contact Now
add to cart

Full-auto Spiral Tube Making Machinery
Specification
Diamond mesh width                                                                  109mm
Product capacity10-20pcs/min
Roll diameterФ80-Ф500mm customized
The thickness of the steel plate rolling0.25-0.4mm
motor Power2.2kW
Power supply380v/50hz
Working air pressure0.6mpa
M/C weight550kg
M/C size1500×1180×2000mm(L×W×H)
The size of the machine740×700×1100mm(L×W×H)

Features

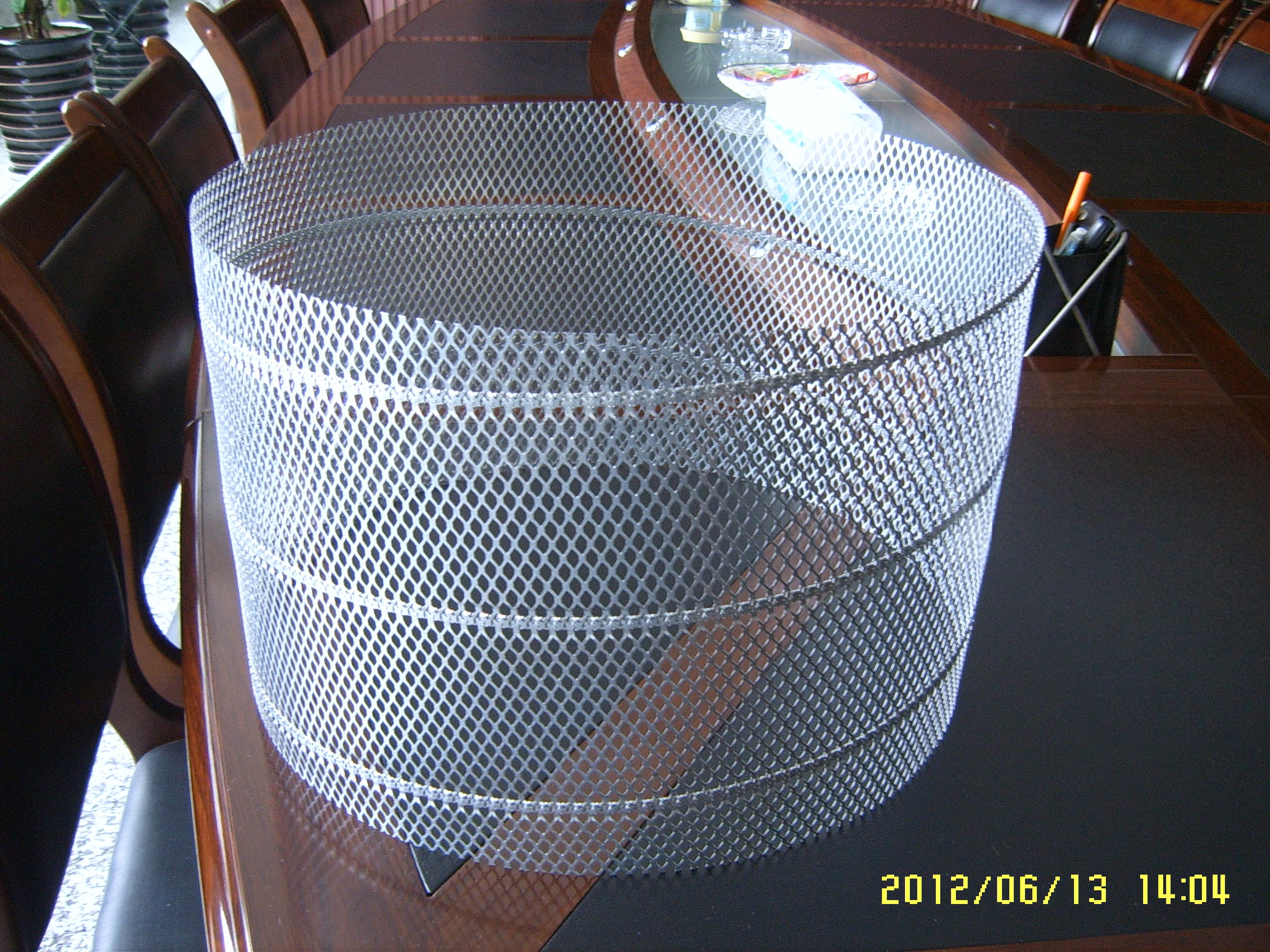

1.Full-auto Air Filter Expanded Metal Mesh Spiral Machine is equipment that automates the production of spiral tubes.
2. Full-auto Air Filter Expanded Metal Mesh Spiral Machine can easily change the diameter of screw tube in a short time.
3. Cut the needed length according to what the customers’ specification
4. Clutch can be adjusted according to different thickness of the steel strip.
5. The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical
materials.
6. Adopts hydraulic pressure drive which has strong power and good stability.
Working Principle
Material Feeding: Full-auto Air Filter Expanded Metal Mesh Spiral Machine is equipped with a material feeding mechanism that automatically feeds the strip material into the forming area at a constant speed and in a fixed direction.
Spiral Forming: Driven by a motor, the forming rollers or molds apply pressure and torque to the strip material, causing it to gradually wind into a spiral shape.
Welding or Bonding: For spiral tubes that require welding, such as spiral steel tubes, a welding device is used to weld the joints of the spiral tubes to ensure their integrity and strength. In the case of spiral paper tubes, an adhesive is usually used for bonding.
Cutting and Finishing: After the spiral tube is formed, a cutting device cuts it into the required length. Some machines are also equipped with a trimming device to remove burrs and sharp edges.
