High-Temperature Resistant Oil Filter Media
GF300-4250M
Quantity:
Introduction:

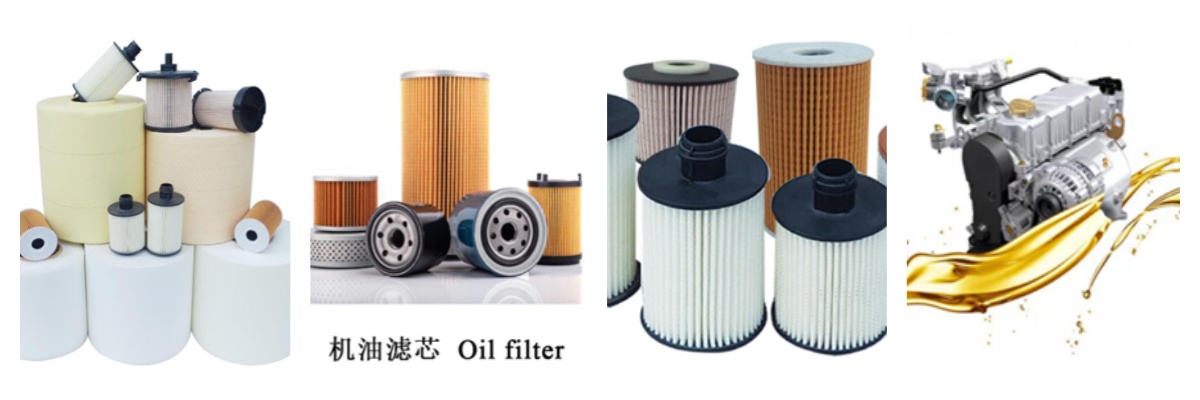

The high temperature resistant oil filter series is mainly used in the engine oil filter system, and it is mostly made of cellulose fiber, glass fiber and nonwoven.
Advantage:
1.It has the characteristics of high temperature resistance, high filtration accuracy, and can filter out dust and moisture in fuel oil to achieve the effect of oil-water separation, avoiding damage to the fuel system due to wear or corrosion, and affecting the normal operation of the engine, etc.
2.Composite materials can choose imported or domestic materials, which have excellent filtration accuracy and dust holding capacity. Through impregnation and curing, the filter paper can still maintain high-efficiency filtration performance and stable shape under high impact pressure.
Model | Gram weight(g/㎡) | Thickness | Air Permeability (L/㎡-s) |
GS300 | 300±10% | 2.3-2.4 | ≥1000 |
GS350 | 350±10% | 1.2-1.3 | ≥1600 |
GS400 | 400±10% | 1.2-1.3 | ≥400 |
GS700 | 700±10% | 1.9-2.0 | ≥150 |
GS720 | 720±10% | 1.4-1.5 | ≥200 |
GS800 | 800±10% | 2.5-2.8 | ≥150 |
GS850 | 850±10% | 2.8-3.0 | ≥150 |
GSF240 | 240±10% | 1.9-2.0 | ≥560 |
GFS350 | 350±10% | 0.9-1.0 | ≥100 |
GFSP140 | 140±10% | 1.65-1.75 | ≥400 |
GNS280 | 280±10% | 1.4-1.5 | ≥1100 |
GNS320 | 320±10% | 1.4-1.5 | ≥1100 |
GNS400 | 400±10% | 1.6-1.7 | ≥1000 |
PUS3250JX | 250±10% | 1.0-1.1 | ≥490 |
PUS4250X | 250±10% | 1.0-1.1 | ≥171 |
PUS4250M | 250±10% | 1.0-1.1 | ≥120 |
