Purifier Filter Strips Hotmelt Bonding Machine

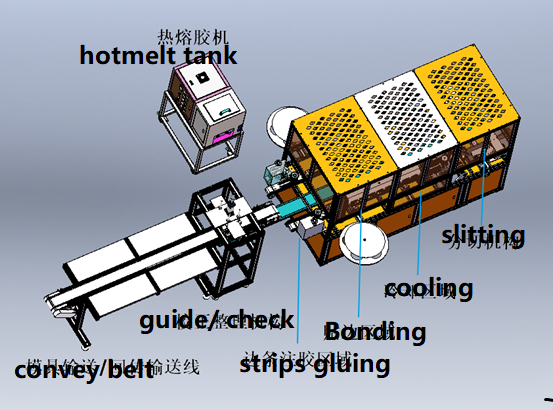

A- Side
1. The operator loads the products one by one on the shaping mold and places them on the conveyor belt.
2. Place the mold on the conveyor line, and the product will automatically correct the flow.
3. The product welt is automatically cut and trimmed;
4. The separated products automatically enter the demoulding mechanism;

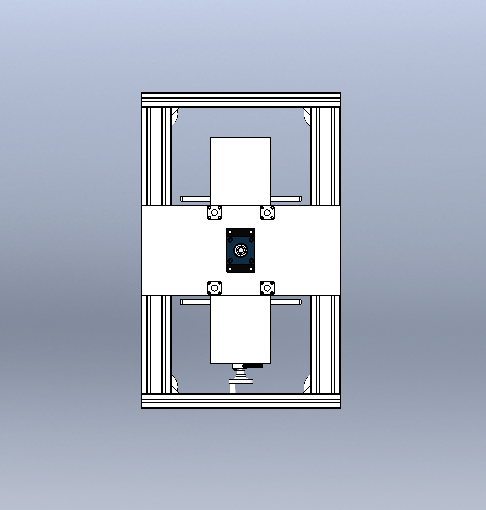

5. The mold returns to the working platform through the elevator return conveyor line;
6. Automatically fine-cut the product after demoulding;
7. The conveyor line is waiting for collection.
B-Side
1. The operator places the products closely on the short side one by one;
2. The equipment automatically divides the products into glue-making-slices-welding;
3. The rough cutting mechanism separates the products one by one;
4. The precision cutting mechanism precisely cuts the product:;
5. The conveyor line is to be collected-inspected;

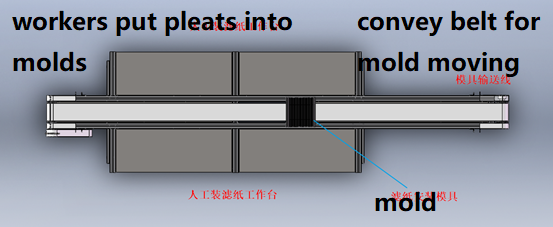

Workers put the filter pleats into molds, start, automatically push the molds to convey belt, then move backwards.

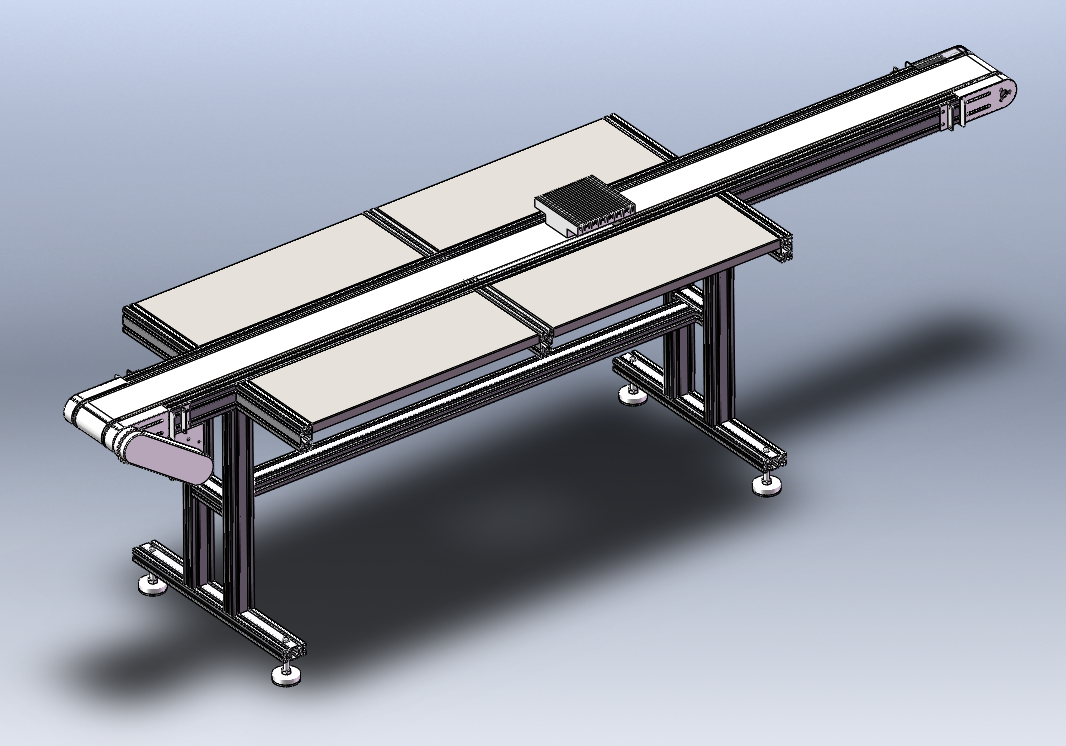

Move to the finishing position, the sensor induces the mold, the conveyor belt stops, and the auxiliary tooling begins to finish the product, so that the filter paper is in the center of the mold. Slate it up and run it back.
When it moves to the end of the mold buffer area, the sensor senses the mold, and the conveyor belt of the long-side welding machine runs, and at the same time it pulls the side strips to run backwards, waiting for the mold to reach the fitting point and start injecting glue. The product length and waiting for glue injection are set by the touch screen according to the product length.
hot melt edge banding machine

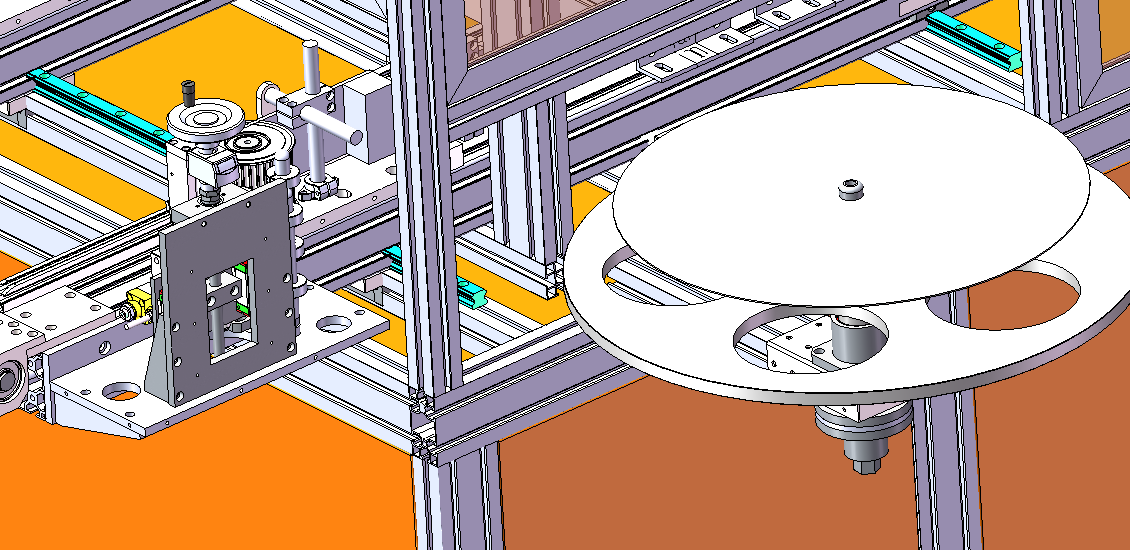

1. The height of the glue injection head is finely adjusted by the handle (with scale display).
2. The glue injection width is adjusted by the handle, and the adjustment range is 10-50mm (with scale display).
3. The glue injection thickness can be adjusted by the equipment speed, glue amount, and the distance of the glue head from the axis. 4. The fine adjustment mechanism for lifting and lowering the side strip plate can adjust the center position of the side strip and the filter element.
5. The friction tension mechanism can effectively ensure the tightness of the edge strip material disc.
6. The edge strip correction mechanism can be fine-tuned to ensure that the position of the edge strip is stable in a line.
