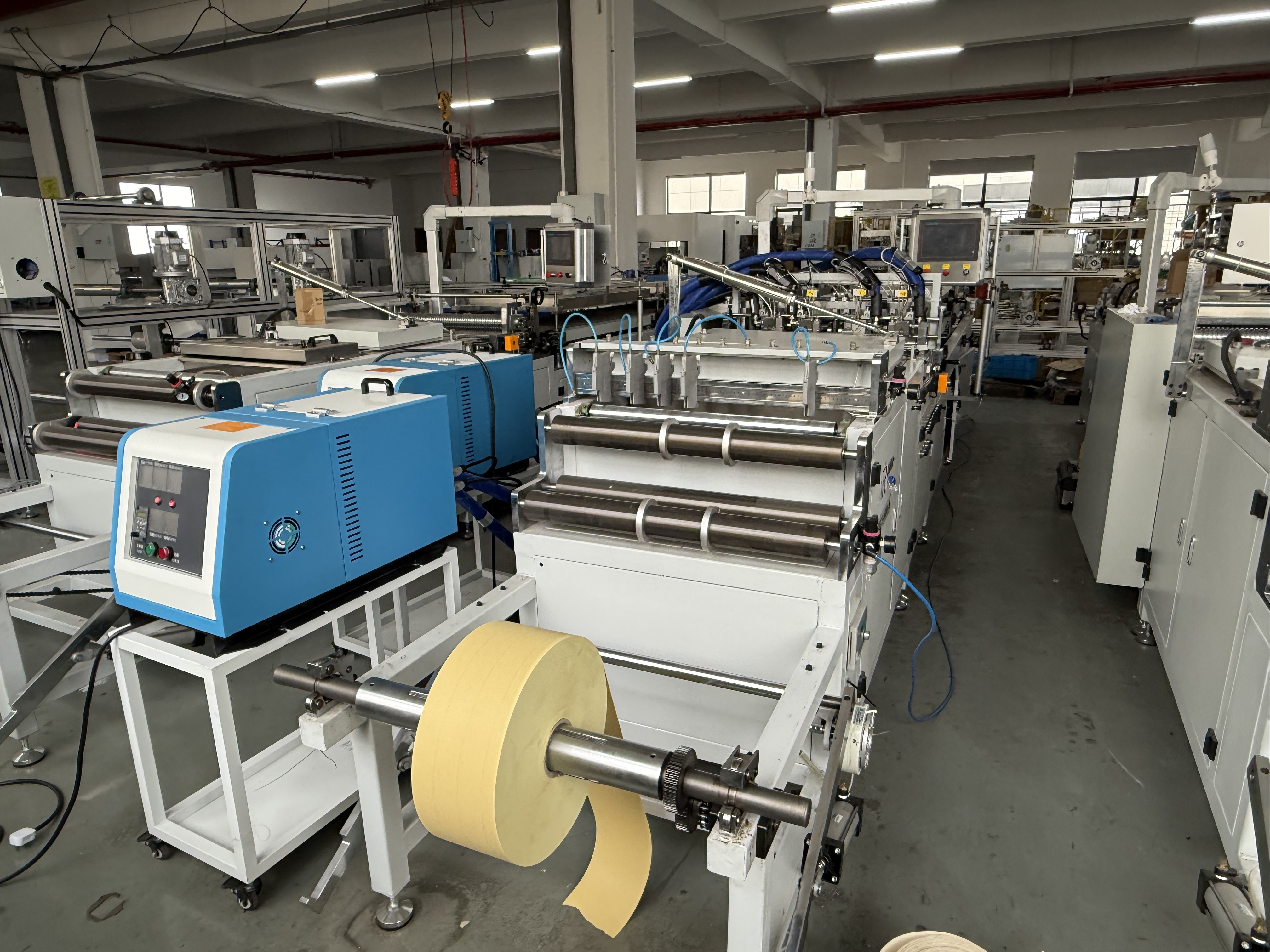

Filter Paper Rotary Pleating Machine
Filter Paper Rotary Pleating Machine
Quantity:
Consists
1. Auto Paper de-coil
2. Paper pre-slitting machine
3. Pre-heating device before pleating
4. Auto counter
5. Water steam device
6. Rollers marking machine
7. Roller and gear collecting machine
8. Pleated paper heat forming and conveyer device
1. Auto Paper de-coil
2. Paper pre-slitting machine
3. Pre-heating device before pleating
4. Auto counter
5. Water steam device
6. Rollers marking machine
7. Roller and gear collecting machine
8. Pleated paper heat forming and conveyer device
Parameters
| Product capability | 0-35m/min |
| Max width | 1000mm |
| Min width | 30mm |
| Max pleat height | 60mm |
| Min pleat height | 12mm |
| Temp. control | 0-300℃ |
| Main power | 12kw |
| Working air pressure | 0.6MPA |
| Power supply | 380V/50HZ |
| M/C weight | 1200kg |
| M/C dimension | 5200mm×1400mm×1170mm |
Feature:
1.The Auto Paper de-coil serves as the starting point, smoothly unwinding large rolls of filter paper, ensuring a continuous and stable supply for subsequent operations.
2.The Paper pre-slitting machine precisely cuts the paper into the desired widths, enhancing the flexibility to meet diverse product requirements. Before the pleating process, the Pre-heating device before pleating softens the paper, reducing the risk of cracks or tears during folding.
3.The Auto counter accurately records the quantity of processed filter paper, facilitating production management and quality control. The Water steam device provides the necessary moisture to improve the paper's pliability.
3.The Auto counter accurately records the quantity of processed filter paper, facilitating production management and quality control. The Water steam device provides the necessary moisture to improve the paper's pliability.
4.The Rollers marking machine creates precise indentations on the paper, guiding the pleating process for consistent and uniform folds. The Roller and gear collecting machine then efficiently gathers and shapes the pleated paper.
5.Finally, the Pleated paper heat forming and conveyer device applies heat to set the pleats in place and transports the finished product, ensuring the filter paper maintains its shape and structural integrity. Together, these components ensure high-quality output and efficient production.
