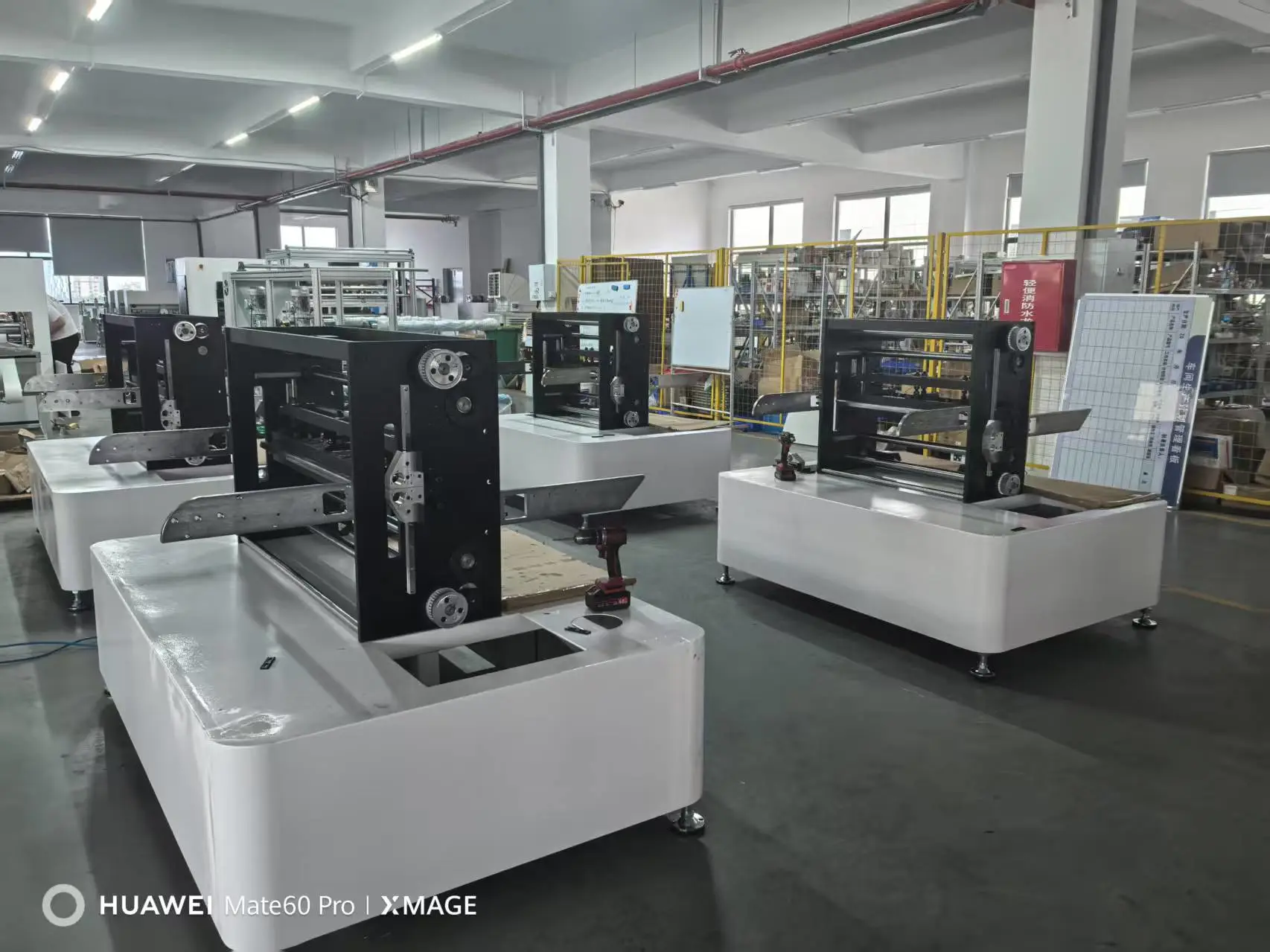

Cartridge Filter Pleating Machine
1、Max width | 600mm |
2、adjustable pleating height | 3-60mm |
3、Pleating speed | 0-400 pleats/min |
4、Power supply | 380V/220V/50hz |
5、Motor power | 4kw |
6、Preheating power | 4KW |
7、Heating temp | normal-300℃ |
8、Working air pressure | 0.6Mpa |
9、M/C weight | 680kg |
Feature:
1.Cartridge filter pleating machine is controlled bya servo motor. pleating speed is faster and the angle is more precise.
2.Full-Auto Filter Media Pleating Machine can adjust the upper and lower blade angles. Produce of different materials, different thicknesses and different harness can be pleated. The highest pleating speed can reach 300 pleats per minute. It is the fastest pleating machine in China so far.
3.The pleating height is adjusted on touch screen. the user can set different pleating heights and angles of plates on PLC.This equipment is used in the automatic pleating line, mainly used for membrane pleating in the line. The pleating is finished by the work of the upper and lower plates.
4. This machine is suitable for mass production of various thickness of filtration media pleats. Advantages:1) Fast pleating speed;2) Multi-layer composite materials can be pleated properly with proper tension control;3) Pleating plates angle is adjustable;4) Pleat plates spacing can be adjusted to avoid the wrinkling of the soft protective net;5) Front pleating table can be lifted up and down to adapt different media feeding levels.
5. The equipment adopts electronic cam, which solves the problem of fixed pleating angle of traditional cam. The angle of pleating blades can be set on the touch screen. The angle of slope is reduced by squeezing the material or increased by gently handling it. This can reduce the damage of the knives to the filter materials. With this feature, it allows one machine to be used universally on a wide range of fifilter media.
