Activated Carbon Air Filter Media

ZF2063

Quantity:

Contact Now

add to cart

Introduction

1.The activated carbon air filter media is made of multi-layer non-woven fabrics with different filtration properties and activated carbon sandwiched in the middle. and microfiltration performance. Combined with nanotechnology to achieve functional optimization such as antibacterial and antibacterial, antiviral, waterproof and moisture permeable, and flame retardant. The application process of the carbon interleaved non-woven fabric is simple, and it does not need

to be fixed by a frame net, and can be formed by folding. The application cost is low and the cost performance is high.

2.Material selection: coconut shell/coal/nut shell, etc.; By source:domestic/imported/regenerated carbon;
According to supporting material: spunlace cloth/filament cloth/spunbond cloth/hot air cloth, etc;Inner material: primary filter media, meltblown , electrostatic cotton, etc. Support specification processing and customization, various specifications and sizes can be customized according to customer requirements, and the styles are complete.

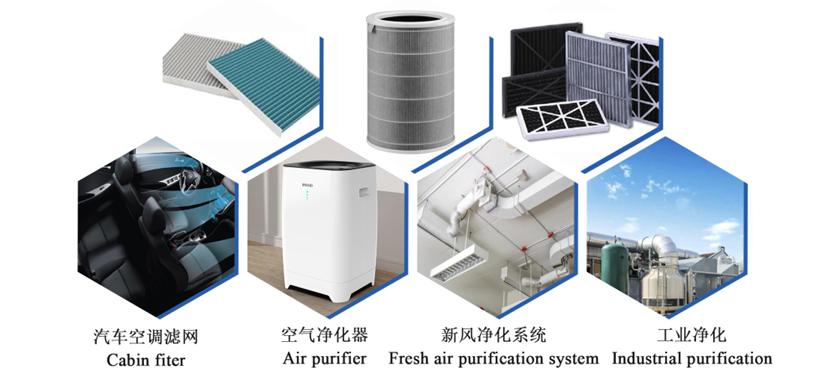

Application:

Cabin Filters
Specifically designed for vehicle interiors, it efficiently blocks pollen, dust, and exhaust fumes to ensure breathable cabin air.
Air Purifiers
In air purification units, its composite structure achieves high-efficiency filtration of PM2.5, allergens, and airborne microbes.
Fresh Air Purification Systems
For mechanical ventilation systems, it maintains continuous outdoor air filtration while optimizing airflow for energy-saving operation.
Industrial Purification
In industrial settings, the media’s durable non-woven matrix resists harsh chemicals and high-volume particulates in exhaust treatment.

Model	Gram weight(g/㎡)	Thickness	Filtration Efficiency @03μm(%)	Air Permeability (L/㎡-s)		Color	Feature
H11 multi-functional activated carbon air filter media
ZF1H3495N-540	540±10%	1.5-1.6	≧95	≧600	White and black		Remove formaldehyde
ZF1H3495N-M-300	300±10%	1.0-1.1	≧95	≧500	White and black		Remove formaldehyde
ZF1H3495N-M-420	420±10%	1.2-1.3	≧96	≧501	White and black		Remove formaldehyde
ZF1H3495N-M-450	450±10%	1.3-1.4	≧97	≧450	White and black		-
ZF1H3520N	650±10%	1.55-1.65	≧97	≧440	White and black
H12 multi-functional activated carbon air filter media
ZF2H3460N-450	450±10%	1.25-1.35	≧99.5	≧526	White and black		Disacidify
ZF2H3460N-H-400	400±10%	1.1-1.2	≧99.9	≧450	White and black		Remove alkali
ZF2H3460N-0H-400	400+10%	1.1-1.2	≧99.9	≧400	White and black		Remove formaldehyde
ZF2H3460N-M-400	400±10%	1.3-1.4	≧99.5	≧500	White and black		Remove formaldehyde
ZC2H3495N-M-300	300±10%	1.35-1.45	≧99.2	≧300	White and black		Remove formaldehyde
H13 multi-functional activated carbon air filter media
ZF3H3495N-H	300±10%	1.1-1.2	≧99.7	≧350	White and black		Disacidify
ZF3H3495N-0H	300±10%	1.1-1.2	≧99.7	≧350	White and black		Remove alkali
ZC3H3495N-300	300±10%	1.0-1.1	≧99.7	≧300	White and black		Remove formaldehyde
ZC3H3495N-M-300	300±10%	1.2-1.3	≧99. 7	≧400	White and black		Remove formaldehyde
Ordinary Sandwich activated carbon air filter media
ZCF1095	270±10%	0.8-0.85	/	≧1000	White and black		Absorb odors
ZCF1161	650±10%	2.45-2.55	/	≧1300	White and black		Absorb odors
ZCF1170	650±10%	3.4-3.5	/	≧1100	White and black		Absorb odors
ZCF1170Y	650±10%	2.45-2.55	/	≧1100	Yellow		Absorb odors
ZCF1170H	650±10%	2.5-2.6	/	≧1000	black		Absorb odors
ZCF1179A	750+10%	2.65-2.75	/	≧950	black		Absorb odors
ZCF1362AN	600±10%	1.7-1.8	/	≧1000	black		Absorb odors
ZCF1367AN	650±10%	1.8-1.9	/	≧1100	black		Absorb odors
ZCF1461	580±10%	2.65-2.75	/	≧1100	black		Absorb odors
ZCF1680AJX	600±10%	1.5-1.6	/	≧1300	black		Absorb odors
ZCF1690	500±10%	1.8-2.0	/	≧1300	black		Absorb odors
ZCF1770	600±10%	3.5-3.8	/	≧1400	black		Absorb odors
ZCF1880	650±10%	3.3-3.5	/	≧1100	black		Absorb odors
ZCF1960ACN	600±10%	1.9-2.0	/	≧1600	black		Absorb odors
ZCF2062	450±10%	1.4-1.5	/	≧1500	black		Absorb odors
ZCF2062A	400±10%	1.55-1.65	/	≧1100	black		Absorb odors
ZCF2063C	540±10%	1.4-1.5	/	≧1000	black		Absorb odors
