China Knife Paper Pleating Machine
China Knife Paper Pleating Machine

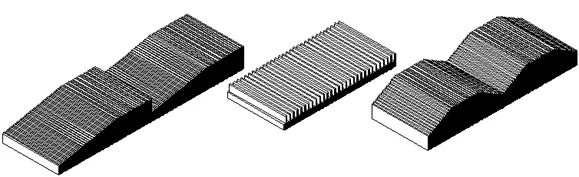

(Suitable materials for pleating like: wooden paper, non-woven, P.P synthetic media, glass fiber, active carbon, mesh, and multi-layers pleating.)
General Introduction:
As manufacturers of Knife Pleating Machines with Online Slitting, we specialize in the production and supply of high-efficiency Online Slitting Knife Pleating Machines. These machines are designed to create parallel pleats on filter media. For optimal operational performance, they feature pneumatically operated in-line toothed cutters and slitting cutters. Equipped with double-arm and surface winding structures, these machines are highly suitable for winding materials such as paper and films.
Boasting extensive industry experience, we have successfully established a strong market presence by providing a precise range of products at competitive market-leading prices. Consequently, we are recognized as one of the most reliable manufacturers of Knife Pleating Machines with Online Slitting.
Technical Parameters:
Max Width | 1050mm |
Pleating Height Range | 15-150 mm |
Product Speed | 200pleasts/min |
Power Supply | 380V/60HZ |
Main Power | 10kw |
Working Air Pressure | 0.6Mpa |
M/C Weight | 1200kg |
Feature:
1. Filter Paper Knife Pleating Machine is automatic control of with CNC system.
2. Perfect design and reliable components ensure the high quality and excellent performance.
3. Filter Paper Knife Pleating Machine is steady that can ensure the high quality of the produced filter.
4. Touch screen operation. It's very easy and friendly for operator.
5.Servo motors controlled. Full-automatically adjust the pleating height, speed. Work quietly and smoothly.
6.The pleat blade role can be adjusted automatically by servo motors control, which is used to match different thickness of the materials, avoid the blade bring paper out while pleating, and also protect the materials’ surface for higher filter efficiency.
7.The heating plate is designed to avoid its out of shape after long time using.
8. The ends of the pleating has the air cylinders presser system.
9. Using two webcams which can connect with PC or IPAD for checking pleats status.
