A filter pleater is a machine or device used in the manufacturing of filters, particularly in industries such as air filtration, liquid filtration, and automotive filtration. Its primary function is to create pleats in filter media (such as paper, fabric, non-woven materials, or synthetic membranes), which increases the surface area of the filter. This enhanced surface area allows the filter to trap more contaminants while maintaining proper airflow or fluid flow, improving efficiency and longevity.

Working Principle:

The filter pleater takes a flat sheet of filter media and forms it into a series of evenly spaced folds (pleats). These pleats are typically held in place with adhesive, wire supports, or end caps to maintain their structure.

Key Components:

Pleating Mechanism: Guides the filter media through a series of blades or rollers to create uniform pleats.

Adhesive Application System: Applies glue or resin to the pleat bases or edges to stabilize them.

Cutting System: Trims the pleated media to the desired length or shape.

Support Structure Integration: May insert wire mesh, perforated plates, or other supports between pleats to reinforce the filter.

Process Steps:

The filter media is unwound from a roll and fed into the pleater.

The pleating mechanism creates precise folds, often with consistent spacing and height.

Adhesive is applied to the pleat bases to hold them together.

The pleated media is cut into sections, which are then assembled into filter cartridges, panels, or elements (e.g., by adding end caps or frames).

Types of Filter Pleaters:

Knife Pleater

Pleating Mechanism: Consists of upper and lower knives and a drive system. The knives are made of high - quality materials to ensure durability and precise folding. The drive system, often controlled by a programmable logic controller (PLC), enables accurate control of the pleating speed, height, and other parameters.

Heating System: Some filter knife pleaters are equipped with a heating system. Heating plates are used to pre - heat the filter media, which helps to soften the material and makes it easier to pleat. This is particularly useful for materials that are difficult to fold, such as certain synthetic fibers or multi - layer composite materials. The heating temperature can be adjusted according to the characteristics of the filter media.

Adjustable Pleating Height: Generally, it is in the range of 5 mm to 80 mm. For example, some machines allow the pleating height to be adjusted from 5 mm to 55 mm or from 8 mm to 55 mm, providing flexibility for different filter designs. Pleating height also can customized. upto 300mm.
Pleating Speed: The speed can vary from 0 to 400 pleats per minute. Servo motors contolled Knife pleater speed is so fast.
Power Supply: Usually requires a 380 V / 50 Hz power supply, and the motor power is generally between 1.1 kw and 4 kw. The heating power also varies according to the model, usually between 3 kw and 4 kw.

Knife Pleater Applications
Knife Pleater is applicable to fold various filter materials, including filter paper, non - woven fabrics, wire mesh, and multi - layer composite filter media. It is widely used in the automotive industry for manufacturing cabin air filters and engine oil filters, in the hydraulic industry for producing hydraulic oil filters, in the purification industry for making air purification filters, and in the water treatment industry for manufacturing water filters.

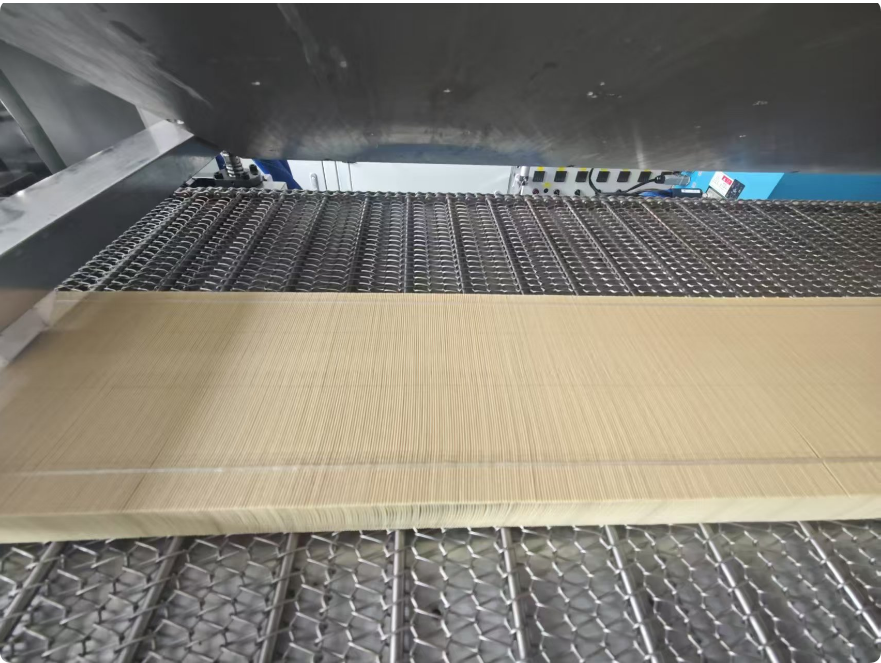

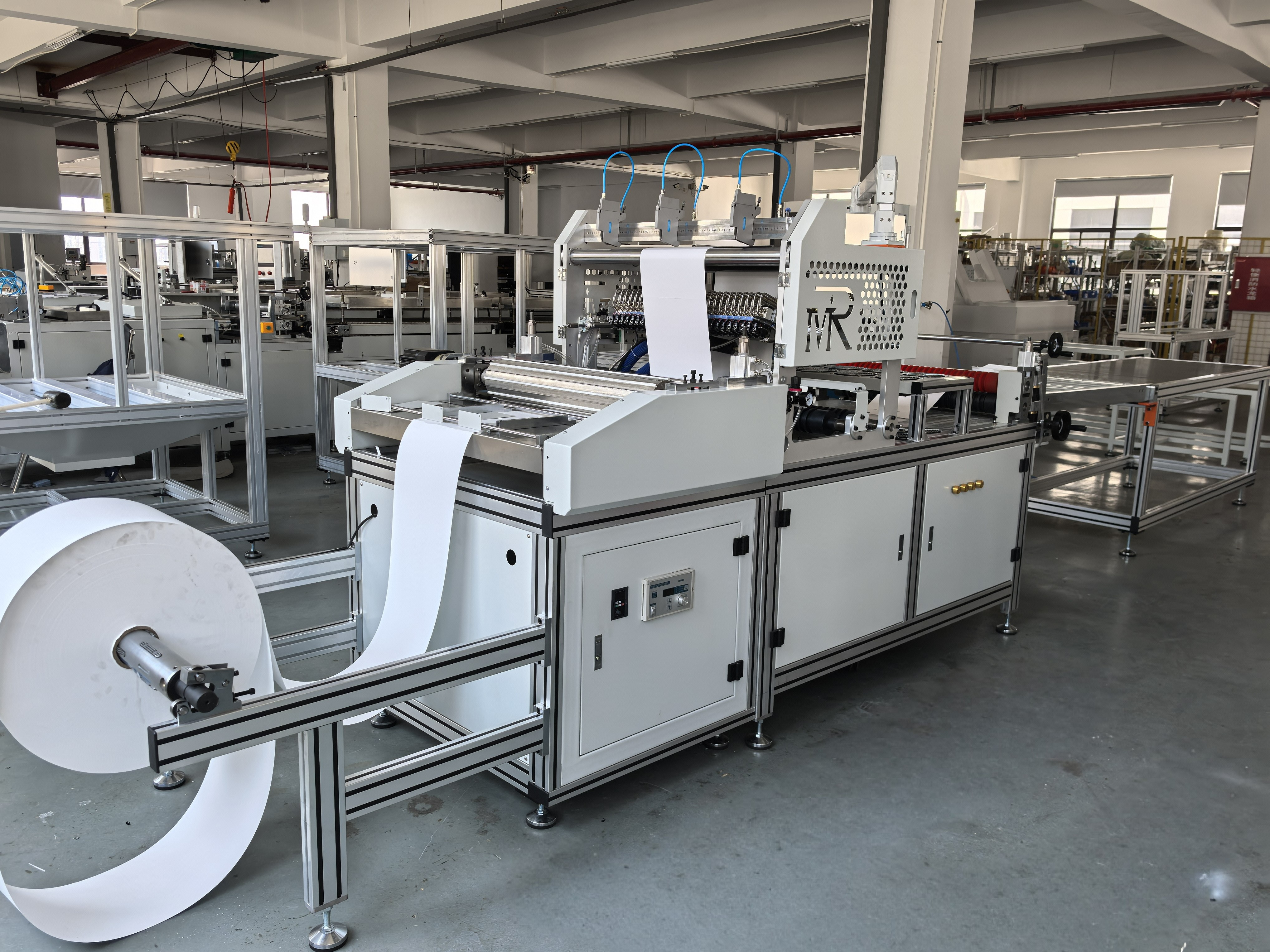

Rotary Pleater

It usually adopts a rotary mechanism. The filter media is fed onto a rotating drum and through the cooperation of mechanical components such as blades, rollers, and molds on the drum or disc, the filter media is continuously folded into pleats. The rotation speed of the drum or disc and the movement of related components are precisely controlled by a programmable logic controller (PLC) to ensure the accuracy and consistency of pleat size and spacing. Some advanced Filter Rotary Pleaters also have functions such as pre - heating and post - heating. The pre - heating function can soften the filter media to make it easier to pleat, and the post - heating function helps to fix the pleated shape.

Air Filter Pleaters: Used for HVAC systems, air purifiers, or automotive air filters. They often handle lightweight media like paper or synthetic fibers.

Liquid Filter Pleaters: Designed for hydraulic filters, water purification systems, or industrial liquid filtration. They may process thicker or more durable media.
