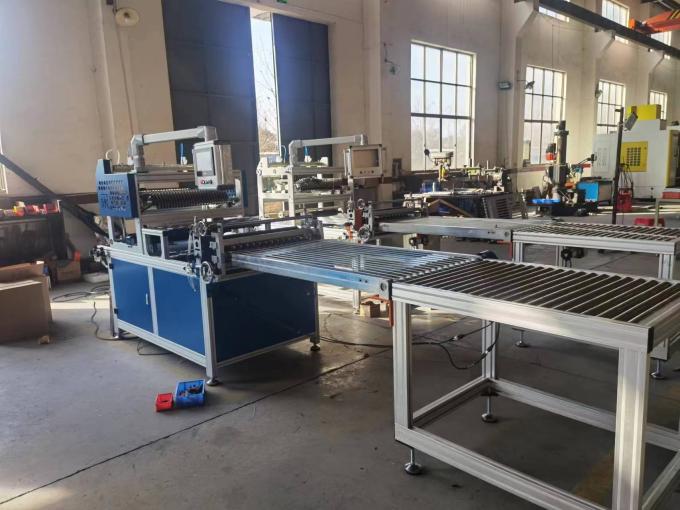

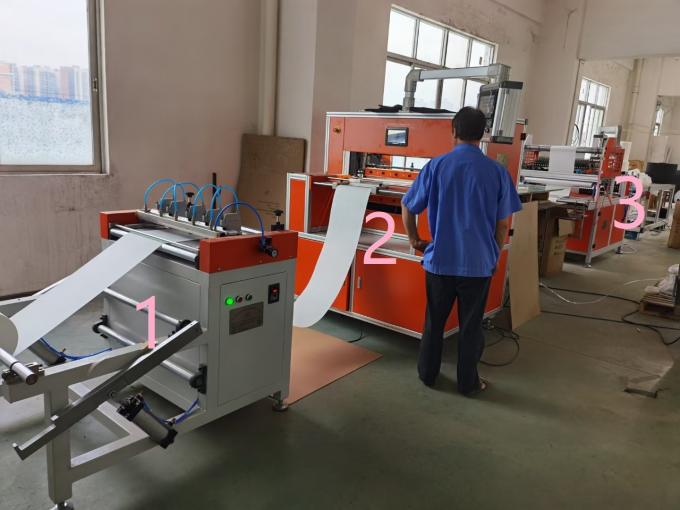

Hepa Filter Mini Pleat Machine
Hepa Filter Mini Pleat Machine
Technical Parameters:
1. Max Width | 700mm |
2. Pleating Height Range | 16-100mm |
3. Product Speed: | 15m/min |
4. The Interval of Gluing | 25.4mm |
5. The Number of Gluing Nozzles | 2x26 lines |
6.Power Supply: | 380V/50HZ |
7. Main Power | 16kw |
8. Working Air Pressure | 0.6Mpa |
9.M/C Weight | 900kg |
10.Hot melt M/C Dimension | 900x1000x1500 |
11.Main M/C Dimension | 7500mm*1050mm*1500mm |
Features:

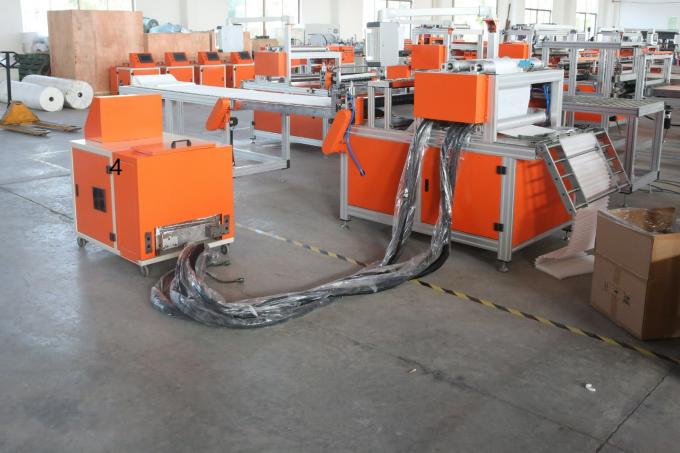

hot melt machine for mini pleat machine offer state of the art hot melt application process which allows application of hot melt with continuous, intermittent & spot beading for various panel, cylindrical & conical filter applications.
The machine’s unique flexible design helps filter manufacturers to widen their product range and meet the market’s ever-changing needs.
PLC & Touch Screen Control
Soft Scoring Roller System: Increasing filter packs quality, no damage to the media/blades (Reduce huge scrap), Extending machine life, Reducing noise & vibration, Easy maintenance
media cut system for glass fiber pleating
Free adjustments of Hot melt beads pattern/position/length
Media Roll fixed by Air Shaft
Air Lift System for Media Roll Mount
Media Tension controlled by Powder Brake and Tension Controller
Inverter Control System for Operation Speed
Air Cylinder Type Slitting Cutters: 4EA Included
Individual Hot Melt Module on/off Control
Outlet Cooling System
Outlet Roller Conveyor (3m)
Adjustable Pleat Pitch (PPI): 4-8 PPI
Reliable After-Treatment: Teflon, Anodizing, Chrome coating, QPQ heat treatment, etc.
