Filter Rotary Paper Pleating Machine
JSMRGT-600F
Quantity:
Features:
1.Full-auto Filter Rotary Paper Pleating Machine is adapt to the for filter core pleat process for environmental protection filter.

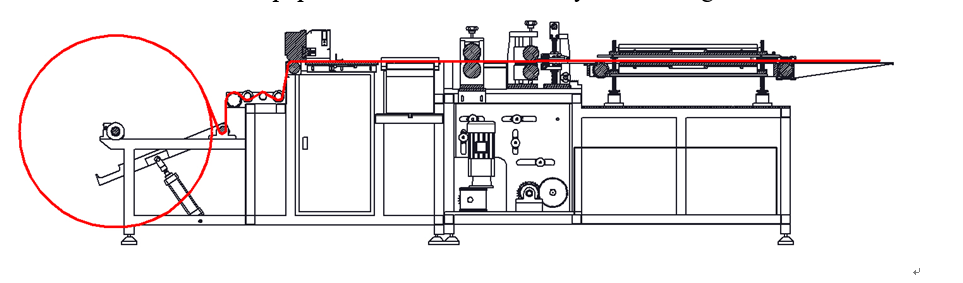

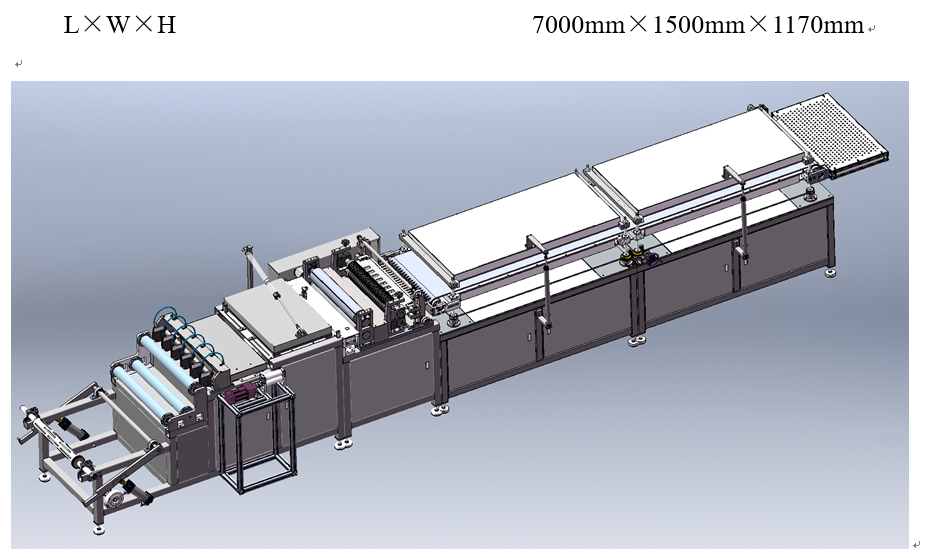

2.hdaf Rotary Paper Pleating Production Line consists of seven parts:automatic feeding device,slitting mechanism,heating and humidifying mechanism,point counting mechanism,roller impression mechanism,wave mechanism,heating set mechanism.
3. Full-auto Rotary ECO Filter Paper Rotary Pleating Equipment adopts touch screen interface system, easy to operate.The work speed is controlled by frequency converter,adaptable to production needs in different situations.Automatic feeding device,is not only easy to operate,but also greatly reduces the manual labor of the operator.Imported slitting knife,cut ends, smooth, no burrs.Humidifying mechanism moistening filter paper,increases the toughness of the filter paper,so the filter paper in rolling traces is not easy to be crushed.
2.hdaf Rotary Paper Pleating Production Line consists of seven parts:automatic feeding device,slitting mechanism,heating and humidifying mechanism,point counting mechanism,roller impression mechanism,wave mechanism,heating set mechanism.
3. Full-auto Rotary ECO Filter Paper Rotary Pleating Equipment adopts touch screen interface system, easy to operate.The work speed is controlled by frequency converter,adaptable to production needs in different situations.Automatic feeding device,is not only easy to operate,but also greatly reduces the manual labor of the operator.Imported slitting knife,cut ends, smooth, no burrs.Humidifying mechanism moistening filter paper,increases the toughness of the filter paper,so the filter paper in rolling traces is not easy to be crushed.
4.Automatic dotting counting,mark the filter paper according to the length of the filter core,simpler and convenient separation of the filter core.Roll marks and drum packs with rollers,not only work fast, but also the dimension precision is high without noise.The wave and indentation are driven by the motor,make the wave and indentation synchronous, and the speed is very coordinated,the heating and shaping mechanism makes the filter core shape stable and difficult to deform.
5.Rotary Pleating Machine has the advantages of the pleating filter core, the end surface is smooth, the size is accurate,so it is the preferred equipment for filter manufacturer to produce the environmental protection filter element pleat.
It is powered by electricity and compressed air.
It is powered by electricity and compressed air.
Parameters:
Production speed | 0m/min—30m/min |
Maximum product width： | 600mm |
Minimum product width： | 30mm |
Main motor： | 2.2kw |
Conveyor motor： | 0.4kw |
Gas pressure: | 0.6MPa |
Supply voltage： | 380V/50Hz |
pleat height range: | 10mm—50mm |
Heat power: | 40kw |
